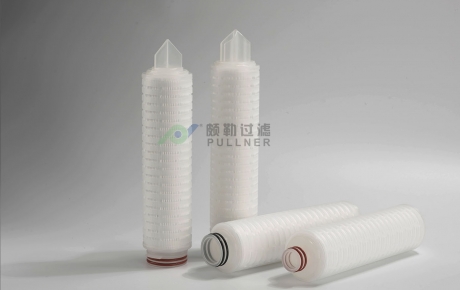

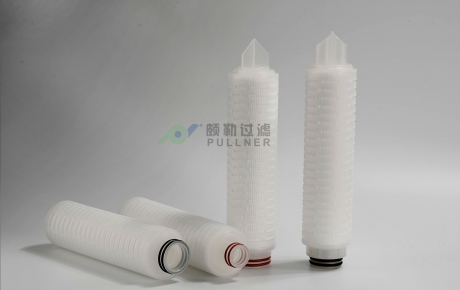

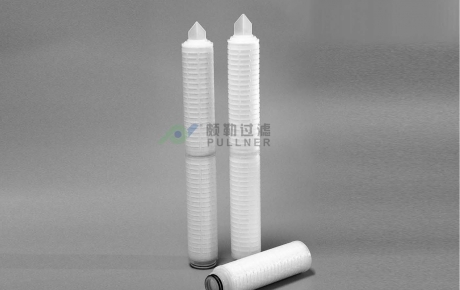

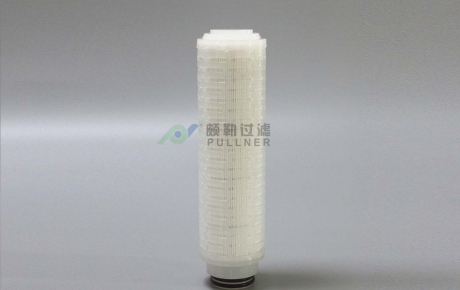

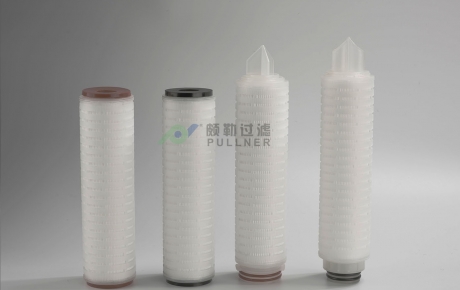

PPM Series High Viscosity Polypropylene Pleated Water Filters

The PPM series pleated filter combines the characteristics of depth filtration and pleat technology, ensure high dirt holding capacity and filtration area. It’s especial

Consult Now>

Related parameters
Download

The PPM series pleated filter combines the characteristics of depth filtration and pleat technology, ensure high dirt holding capacity and filtration area. It’s especially suitable for filtering high suspended particles, colloidal substances and high viscosity liquids.

Material Constructions

Filter media	Polypropylene (PP)
Support/Drainage	Polypropylene (PP)
Cage/Core/End Cap	Polypropylene (PP)
Seal material	Silicone, NBR, Viton, EPDM

Performance

Filtration rating

0.22μm, 0.45μm, 1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 100μm

Maximum Operating Temperature

80℃

Maximum Operating Difference Pressure

4bar/21℃

2.4bar/80℃

Filtration Efficiency

PPM	＞95%	＞98%	＞99.8%	＞99.9%
0.3μm	0.15	0.22	0.25	0.3
0.5μm	0.22	0.4	0.45	0.5
1.0μm	0.5	0.65	0.8	1.0
5.0μm	1.5	2.0	2.5	3.0

Ordering Information

PPM 0300 10 C1 E

Series	Micron	Length	End Cap Type		Seal Material
PPM	0030=0.3μm	05=5"	C1	=226/Spear	E	=EPDM
	0050=0.5μm	10=10"	C3	=222/Spear	S	=Silicone
	0100=1.0μm	20=20"	C5	=222/Flat	V	=Viton
	0300=3.0μm	30=30"	C6	=226/Flat	P	=FEP
	0500=5.0μm	40=40"	C9	=DOE
