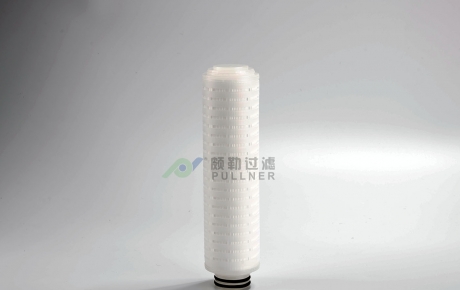

PFA Corrosion-resistant Fluorine Membrane Filter Cartridge

The filter layer of PFA series Perfluorinated (PFA) filter cartridge adopts hydrophilic Polytetrafluoroethylene (PTFE) filter membrane, and the outer cage, center core an

Consult Now>

Related parameters
Download

The filter layer of PFA series Perfluorinated (PFA) filter cartridge adopts hydrophilic Polytetrafluoroethylene (PTFE) filter membrane, and the outer cage, center core and end cap are all made of PFA material, which makes the filter element have particularly excellent chemical corrosion resistance and low precipitation characteristics. To ensure that the filter element can be highly efficient, long-term filtration of strong corrosive acids, alkalis and organic solvents, etc.

Material Construction

Filter Media	PFA:PTFE(Hydrophilic)
Support/Drainage	PFA
Cage/Core/End Cap	PFA
Seal Material	FEP

Performance

Filtration rating:	0.02μm, 0.05μm, 0.1μm, 0.22μm, 0.45μm, 1μm, 3μm, 5μm, 10μm
Maximum Operating Temperature	170℃
Maximum Operating Differential Pressure	4bar/21℃ 2.4bar/80℃

Biological Safety
