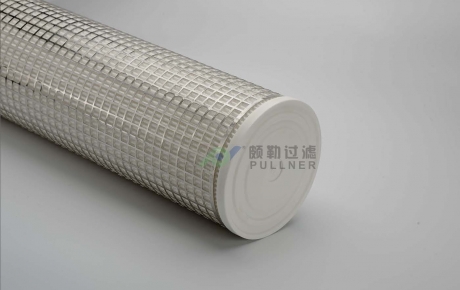

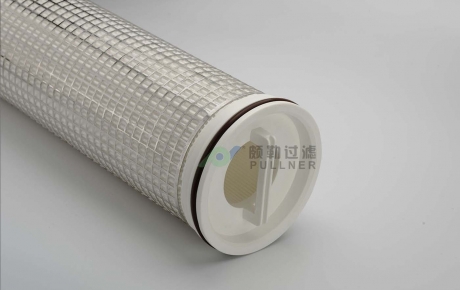

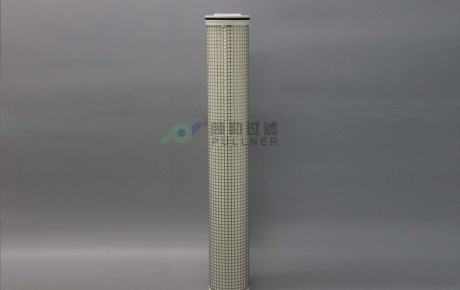

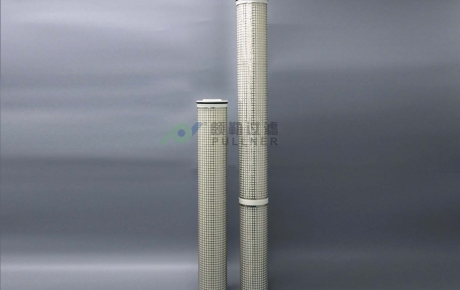

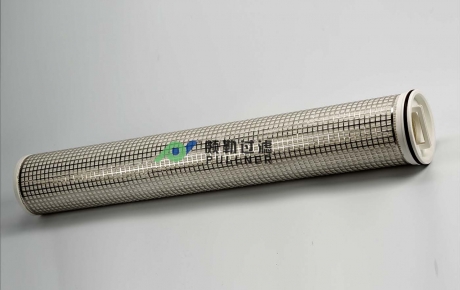

PFHLH High Temperature High Flow Filter Cartridge

Stainless Steel High Flow Water Filter is use stainless steel material (SS304, SS316L), pleated type. It’s designed for high temperature and pressure conditions. High st
Consult Now>
  • Related parameters
  • Download

PHFLH series high temperature resistant high flow filter cartridge adopts 6" large diameter structure, single open end, no center core, outer cage is made of 304 stainless steel, filter material and support layer are made of high temperature resistant materials, which can be long-term under the condition of 120℃ use.



Material Construction

Filter Media

PPDeep Pleated PP/Melt PP

FOOrganic Fiber

GFGlass Fiber/Polyester

Support/Drainage

PP

Organic Fiber

Polyester

End Cap Material

Fiberglass   reinforced polypropylene

Fiberglass reinforced   polypropylene

Fiberglass reinforced   polypropylene



Performance

Maximum   Operation Temperature

PP82°C

FO120

GF121

Maximum   Operation Differential Pressure

PP3.44bar / 21°C

FO3.44bar / 120°C

GF3.44bar / 121°C



Flow Rate and Filtration Area

Size

(Diameter*Length)

Design Flow

m3/hr

Maximum Flow

m3/hr

Filtration Area

(㎡)

6"*20"

15

40

2.6

6"*40"

30

80

5.2

6"*60"

45

120

7.8



Ordering Information

   PHF          L      PP                                 0500                                   40                   G                      V

Series

Type

Media

Micron

Length

Structure

Seal Material

End Cap Type

PHF

L

PP

0010

=0.1μm

1500

=15μm

20

=20"

G

=PP Outer Cage

V

=Viton

ZA

=Single-RingHFK


LH

PBT

0100

=1.0μm

2000

=20μm

40

=40"

M

=Melt blown

S

=Silicone

ZB

=Double-RingHFK


K

GF

0500

=5.0μm

4000

=40μm

60

=60"

S

=Plastic net

E

=EPDM

ZA

=TypeHFM


M


1000

=10μm

7000

=70μm







ZB

=TypeHFM






1000

=100μm






None

=HFL/HFLH


×
