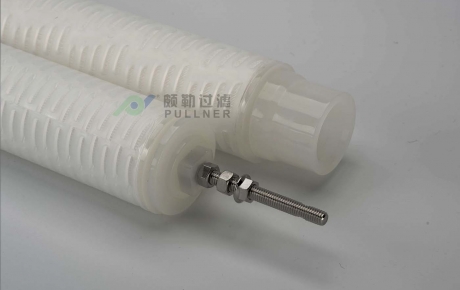

PHFZ Series Pleated Filter Cartridge

PHFZ Series pleated filter cartridge is backflushable pleated filters, designed for iron removal in condensate with or without resin pre-coat in power plant. According to

Consult Now>

Related parameters
Download

PHFZ Series pleated filter cartridge is backflushable pleated filters, designed for iron removal in condensate with or without resin pre-coat in power plant. According to the structure, it can be divided into three types: PHFZ-I (7 parts), PHFZ-II (2 parts) and PHFZ-III (4 parts). The PHFZ-II (4+3) is 40" and 30" welded, with integral cage outer diameter of φ69.

Material Constructions

Filter Media	Polypropylene (PP)
Cage/Core/End cap	Polypropylene (PP)
Accessories (nut, screw)	SS304

Performance

Maximum Operating Temperature	85℃
Maximum Operating Differential Pressure	3.0bar/65℃
Filtration Area	6.5㎡
Flow Rate	3.5-4.5m³/h（Design） 3.9m³/h（Recommend）
Inlet water quality	＜2000ppb

Backwash water or gas: Under the pressure of 1.36-2.1bar, the backwash water of each filter cartridge is 0.45-0.65m3/h, backwash gas 3.4-5m3/h, can achieve the ideal effect.

600MW supercritical units and 1000MW ultra-supercritical units, respectively recommended use 4μm and 1μm 70" filter cartridge, when debugging recommend 10μm filter cartridge for start-up.
